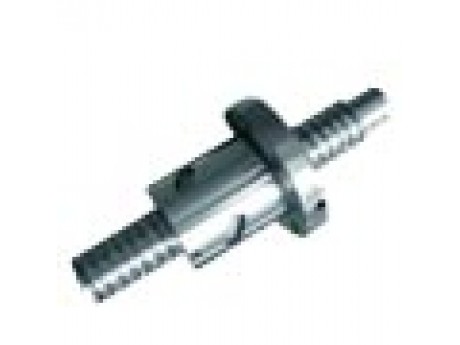

产品名称：ABBA滚珠丝杠 SFU系列
- 型号：SFU
- 规格：标准
- 点击数：99196
- 产品简介：ABBA滚珠丝杠特点：高信赖性；圆滑的动作性；无背隙与高刚性；循环方式；优异的耐久性。
|

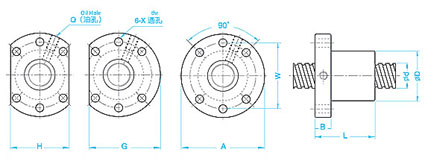

l:导程Da:珠径 N:珠圈数 K:刚性(kgf/μm) Ca:动额定负荷(kgf) Coa:静额定负荷(kgf) |
|
型 号 |
滾珠螺杆 , 螺帽之基准数据 |
|
d |
l |
Da |
D |
A |
B |
L |
W |
X |
H |
Q |
n |
Ca |
Coa |
K |
| ★ |
SFU01604-4 |
16 |
4 |
2.381 |
28 |
48 |
10 |
40 |
38 |
5.5 |
40 |
M6 |
4 |
625 |
1254 |
22 |
| ★ |
SFU01605-4 |
5 |
3.175 |
28 |
48 |
10 |
50 |
38 |
5.5 |
40 |
M6 |
4 |
888 |
1525 |
22 |
| ★ |
SFU01610-3 |
10 |
3.175 |
28 |
48 |
10 |
57 |
38 |
5.5 |
40 |
M6 |
3 |
716 |
1232 |
17 |
|
SFU02004-4 |
20 |
4 |
2.381 |
36 |
58 |
10 |
42 |
47 |
6.6 |
44 |
M6 |
4 |
693 |
1534 |
27 |
| ★ |
SFU02005-4 |
5 |
3.175 |
36 |
58 |
10 |
51 |
47 |
6.6 |
44 |
M6 |
4 |
999 |
1995 |
27 |
|
SFU02504-4 |
25 |
4 |
2.381 |
40 |
62 |
10 |
42 |
51 |
6.6 |
48 |
M6 |
4 |
775 |
2046 |
33 |
| ★ |
SFU02505-4 |
5 |
3.175 |
40 |
62 |
10 |
51 |
51 |
6.6 |
48 |
M6 |
4 |
1119 |
2581 |
34 |
|
SFU02506-4 |
6 |
3.969 |
40 |
62 |
10 |
54 |
51 |
6.6 |
48 |
M6 |
4 |
1494 |
3117 |
34 |
|
SFU02508-4 |
8 |
4.762 |
40 |
62 |
10 |
63 |
51 |
6.6 |
48 |
M6 |
4 |
1903 |
3695 |
35 |
| ★ |
SFU02510-4 |
10 |
4.762 |
40 |
62 |
12 |
85 |
51 |
6.6 |
48 |
M6 |
4 |
1903 |
3695 |
35 |
|
SFU03204-4 |
32 |
4 |
2.381 |
50 |
80 |
12 |
44 |
65 |
9 |
62 |
M6 |
4 |
868 |
2640 |
43 |
| ★ |
SFU03205-4 |
5 |
3.175 |
50 |
80 |
12 |
52 |
65 |
9 |
62 |
M6 |
4 |
1264 |
3403 |
43 |
|
SFU03206-4 |
6 |
3.969 |
50 |
80 |
12 |
57 |
65 |
9 |
62 |
M6 |
4 |
1706 |
4217 |
43 |
|
SFU03208-4 |
8 |
4.762 |
50 |
80 |
12 |
65 |
65 |
9 |
62 |
M6 |
4 |
2177 |
5015 |
44 |
| ★ |
SFU03210-4 |
10 |
6.35 |
50 |
80 |
12 |
90 |
65 |
9 |
62 |
M6 |
4 |
3093 |
6102 |
44 |
|
SFU03220-3 |
20 |
3.969 |
50 |
80 |
12 |
99 |
65 |
9 |
62 |
M6 |
3 |
1354 |
3283 |
52 |
| ★ |
SFU04005-4 |
40 |
5 |
3.175 |
63 |
93 |
14 |
55 |
78 |
9 |
70 |
M8 |
4 |
1407 |
4342 |
53 |
|
SFU04006-4 |
6 |
3.969 |
63 |
93 |
14 |
60 |
78 |
9 |
70 |
M6 |
4 |
1889 |
5318 |
54 |
|
SFU04008-4 |
8 |
4.762 |
63 |
93 |
14 |
67 |
78 |
9 |
70 |
M6 |
4 |
2413 |
6335 |
54 |
| ★ |
SFU04010-4 |
10 |
6.35 |
63 |
93 |
14 |
93 |
78 |
9 |
70 |
M8 |
4 |
3480 |
7979 |
55 |
|
SFU05010-4 |
50 |
10 |
6.35 |
75 |
110 |
16 |
93 |
93 |
11 |
85 |
M8 |
4 |
3898 |
10326 |
68 |
| ★ |
SFU05020-4 |
20 |
7.144 |
75 |
110 |
16 |
138 |
93 |
11 |
85 |
M8 |
4 |
4621 |
11881 |
68 |
| ★ |
SFU06310-4 |
63 |
10 |
6.35 |
90 |
125 |
18 |
98 |
108 |
11 |
95 |
M8 |
4 |
4402 |
13611 |
84 |
|
SFU06320-4 |
20 |
9.525 |
90 |
135 |
20 |
149 |
115 |
13.5 |
100 |
M8 |
4 |
7401 |
19009 |
86 |
| ★ |
SFU08010-4 |
80 |
10 |
6.35 |
105 |
145 |
20 |
98 |
125 |
13.5 |
110 |
M8 |
4 |
4900 |
17366 |
106 |
|
SFU08020-4 |
20 |
9.525 |
125 |
165 |
25 |
154 |
145 |
13.5 |
130 |
M8 |
4 |
8403 |
25345 |
108 |
|
SFU10020-4 |
100 |
20 |
9.525 |
150 |
202 |
30 |
180 |
170 |
17.5 |
155 |
M8 |
4 |
9405 |
32737 |
134 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
备注 : 有标志 ★ 可制作左螺纹. |
