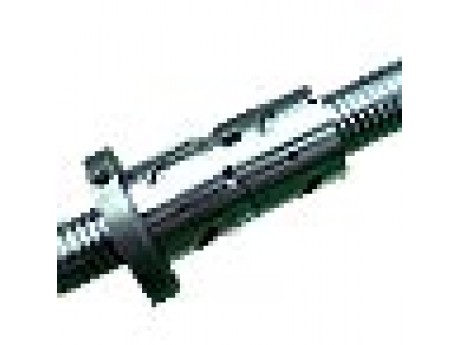

产品名称：ABBA滚珠丝杠 DFU系列
- 型号：DFU
- 规格：标准
- 点击数：132985
- 产品简介：ABBA滚珠丝杠特点：高信赖性；圆滑的动作性；无背隙与高刚性；循环方式；优异的耐久性。
|
l:导程Da:珠径 N:珠圈数 K:刚性(kgf/μm) Ca:动额定负荷(kgf) Coa:静额定负荷(kgf) |
|
型 号 |

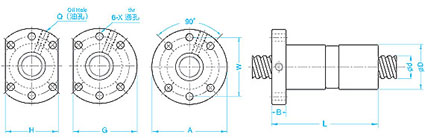

滾珠螺杆 , 螺帽之基准数据 |
|
d |
l |
Da |
D |
A |
B |
L |
W |
X |
H |
Q |
n |
Ca |
Coa |
K |
| ★ |
DFU01604-4 |
16 |
4 |
2.381 |
28 |
48 |
10 |
80 |
38 |
5.5 |
40 |
M6 |
4 |
625 |
1254 |
42 |
| ★ |
DFU01605-4 |
5 |
3.175 |
28 |
48 |
10 |
100 |
38 |
5.5 |
40 |
M6 |
4 |
888 |
1525 |
43 |
| ★ |
DFU01610-3 |
10 |
3.175 |
28 |
48 |
10 |
118 |
38 |
5.5 |
40 |
M6 |
3 |
716 |
1232 |
32 |
|
DFU02004-4 |
20 |
4 |
2.381 |
36 |
58 |
10 |
80 |
47 |
6.6 |
44 |
M6 |
4 |
693 |
1534 |
53 |
| ★ |
DFU02005-4 |
5 |
3.175 |
36 |
58 |
10 |
101 |
47 |
6.6 |
44 |
M6 |
4 |
999 |
1995 |
53 |
|
DFU02504-4 |
25 |
4 |
2.381 |
40 |
62 |
10 |
80 |
51 |
6.6 |
48 |
M6 |
4 |
775 |
2046 |
65 |
| ★ |
DFU02505-4 |
5 |
3.175 |
40 |
62 |
10 |
101 |
51 |
6.6 |
48 |
M6 |
4 |
1119 |
2581 |
66 |
|
DFU02506-4 |
6 |
3.969 |
40 |
62 |
10 |
105 |
51 |
6.6 |
48 |
M6 |
4 |
1494 |
3117 |
67 |
|
DFU02508-4 |
8 |
4.762 |
40 |
62 |
10 |
120 |
51 |
6.6 |
48 |
M6 |
4 |
1903 |
3695 |
67 |
| ★ |
DFU02510-4 |
10 |
4.762 |
40 |
62 |
12 |
145 |
51 |
6.6 |
48 |
M6 |
4 |
1903 |
3695 |
67 |
|
DFU03204-4 |
32 |
4 |
2.381 |
50 |
80 |
12 |
80 |
65 |
9 |
62 |
M6 |
4 |
868 |
2640 |
83 |
| ★ |
DFU03205-4 |
5 |
3.175 |
50 |
80 |
12 |
102 |
65 |
9 |
62 |
M6 |
4 |
1264 |
3403 |
84 |
|
DFU03206-4 |
6 |
3.969 |
50 |
80 |
12 |
105 |
65 |
9 |
62 |
M6 |
4 |
1706 |
4217 |
84 |
|
DFU03208-4 |
8 |
4.762 |
50 |
80 |
12 |
122 |
65 |
9 |
62 |
M6 |
4 |
2177 |
5015 |
85 |
| ★ |
DFU03210-4 |
10 |
6.35 |
50 |
80 |
12 |
162 |
65 |
9 |
62 |
M6 |
4 |
3093 |
6102 |
86 |
| ★ |
DFU04005-4 |
40 |
5 |
3.175 |
63 |
93 |
14 |
105 |
78 |
9 |
70 |
M8 |
4 |
1407 |
4342 |
104 |
|
DFU04006-4 |
6 |
3.969 |
63 |
93 |
14 |
108 |
78 |
9 |
70 |
M8 |
4 |
1889 |
5318 |
104 |
|
DFU04008-4 |
8 |
4.672 |
63 |
93 |
14 |
132 |
78 |
9 |
70 |
M8 |
4 |
2413 |
6335 |
105 |
| ★ |
DFU04010-4 |
10 |
6.35 |
63 |
93 |
14 |
165 |
78 |
9 |
70 |
M8 |
4 |
3480 |
7979 |
106 |
|
DFU05010-4 |
50 |
10 |
6.35 |
75 |
110 |
16 |
171 |
93 |
11 |
85 |
M8 |
4 |
3898 |
10326 |
132 |
| ★ |
DFU05020-4 |
20 |
7.144 |
75 |
110 |
16 |
280 |
93 |
11 |
85 |
M8 |
4 |
4621 |
11881 |
132 |
| ★ |
DFU06310-4 |
63 |
10 |
6.35 |
90 |
125 |
18 |
182 |
108 |
11 |
95 |
M8 |
4 |
4402 |
13611 |
165 |
|
DFU06320-4 |
20 |
9.525 |
90 |
135 |
20 |
290 |
115 |
13.5 |
100 |
M8 |
4 |
7401 |
19009 |
167 |
| ★ |
DFU08010-4 |
80 |
10 |
6.35 |
105 |
145 |
20 |
182 |
125 |
13.5 |
110 |
M8 |
4 |
4900 |
17366 |
207 |
|
DFU08010-4 |
20 |
9.525 |
125 |
165 |
25 |
295 |
145 |
13.5 |
130 |
M8 |
4 |
8403 |
25345 |
210 |
|
DFU10020-4 |
100 |
20 |
9.525 |
150 |
202 |
30 |
340 |
170 |
17.5 |
155 |
M8 |
4 |
9405 |
32737 |
261 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
备注 : 有标志 ★ 可制作左螺纹. |
