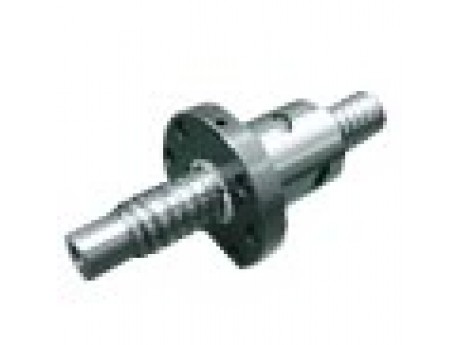

产品名称：ABBA滚珠丝杠 SFI系列
- 型号：SFI
- 规格：标准
- 点击数：72301
- 产品简介：ABBA滚珠丝杠特点：高信赖性；圆滑的动作性；无背隙与高刚性；循环方式；优异的耐久性。
|
l:导程Da:珠径 N:珠圈数 K:刚性(kgf/μm) Ca:动额定负荷(kgf) Coa:静额定负荷(kgf) |
|
型 号 |

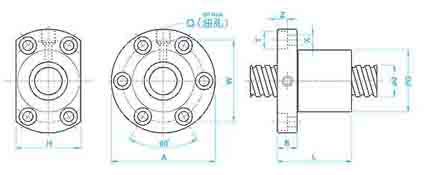

滾珠螺杆 , 螺帽之基准数据 |
|
d |
l |
Da |
D |
A |
B |
L |
W |
H |
X |
Y |
Z |
Q |
n |
Ca |
Coa |
K |
| ★ |
SFI01604-4 |
16 |
4 |
2.381 |
30 |
49 |
10 |
50 |
39 |
34 |
4.5 |
8 |
4.5 |
M6 |
4 |
625 |
1254 |
22 |
| ★ |
SFI01605-4 |
5 |
3.175 |
30 |
49 |
10 |
50 |
39 |
34 |
4.5 |
8 |
4.5 |
M6 |
4 |
888 |
1525 |
22 |
| ★ |
SFI01610-3 |
10 |
3.175 |
34 |
58 |
10 |
57 |
45 |
34 |
5.5 |
9.5 |
5.5 |
M6 |
3 |
716 |
1232 |
17 |
|
SFI02004-4 |
20 |
4 |
2.381 |
34 |
57 |
11 |
46 |
45 |
40 |
5.5 |
9.5 |
5.5 |
M6 |
4 |
693 |
1584 |
27 |
| ★ |
SFI02005-4 |
5 |
3.175 |
34 |
57 |
11 |
51 |
45 |
40 |
5.5 |
9.5 |
5.5 |
M6 |
4 |
999 |
1995 |
27 |
| ★ |
SFI0205T-4 |
5.08 |
3.175 |
34 |
57 |
11 |
51 |
45 |
40 |
5.5 |
9.5 |
5.5 |
M6 |
4 |
999 |
1995 |
27 |
| ★ |
SFI02504-4 |
25 |
4 |
2.381 |
40 |
63 |
11 |
46 |
51 |
46 |
5.5 |
9.5 |
5.5 |
M6 |
4 |
775 |
2046 |
33 |
| ★ |
SFI02505-4 |
5 |
3.175 |
40 |
63 |
11 |
51 |
51 |
46 |
5.5 |
9.5 |
5.5 |
M8 |
4 |
1119 |
2581 |
34 |
|
SFI02510-4 |
10 |
4.762 |
46 |
72 |
12 |
85 |
58 |
52 |
6.5 |
11 |
6.5 |
M6 |
4 |
1903 |
3953 |
35 |
|
SFI3204-4 |
32 |
4 |
2.381 |
46 |
72 |
12 |
47 |
58 |
52 |
6.5 |
11 |
6.5 |
M6 |
4 |
868 |
2640 |
43 |
| ★ |
SFI3205-4 |
5 |
3.175 |
46 |
7212 |
12 |
52 |
58 |
52 |
6.5 |
11 |
6.5 |
M8 |
4 |
1264 |
3403 |
43 |
| ★ |
SFI3210-4 |
10 |
6.35 |
54 |
88 |
15 |
90 |
70 |
62 |
9 |
14 |
8.5 |
M8 |
4 |
3.93 |
6102 |
44 |
| ★ |
SFI4005-4 |
40 |
5 |
3.175 |
56 |
90 |
15 |
55 |
72 |
64 |
9 |
14 |
8.5 |
M8 |
4 |
1407 |
4342 |
53 |
| ★ |
SFI4010-4 |
40 |
10 |
6.35 |
62 |
104 |
18 |
93 |
82 |
70 |
11 |
17.5 |
11 |
M8 |
4 |
3480 |
7979 |
55 |
|
SFI5010-4 |
50 |
10 |
6.35 |
72 |
114 |
18 |
93 |
92 |
82 |
11 |
17.5 |
11 |
M8 |
4 |
3898 |
10326 |
68 |
| ★ |
SFI6310-4 |
63 |
10 |
6.35 |
85 |
131 |
22 |
98 |
107 |
95 |
14 |
20 |
13 |
M8 |
4 |
4402 |
13611 |
81 |
| ★ |
SFI8010-4 |
80 |
10 |
6.35 |
105 |
150 |
22 |
98 |
127 |
115 |
14 |
20 |
13 |
M8 |
4 |
4900 |
17366 |
106 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
l:导程 Da:珠径 N:珠圈数 K:刚性(kgf/μm) Ca:动额定负荷(kgf) Coa:静额定负荷(kgf) |
