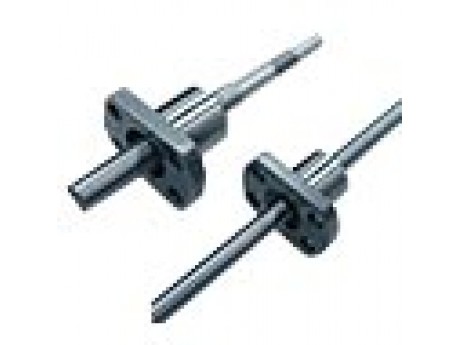

产品名称：ABBA滚珠丝杠 SFK系列
- 型号：SFK
- 规格：标准
- 点击数：4556
- 产品简介：ABBA滚珠丝杠特点：高信赖性；圆滑的动作性；无背隙与高刚性；循环方式；优异的耐久性。
| l: 导程 Da: 珠径 n: 珠圈数 K: 刚性 (kgf/μm) Ca: 动额定负荷 (kgf) |
| Coa: 静额定负荷 (kgf) |

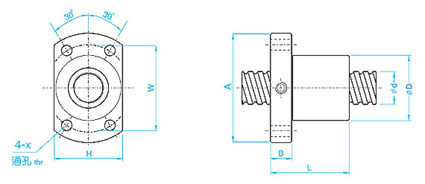

| 型 号 |
滾珠螺杆 , 螺帽之基准数据 |
| d |
l |
Da |
D |
A |
B |
L |
W |
H |
X |
Y |
Z |
Q |
n |
Ca |
Coa |
K |
| SFK0401 |
4 |
1 |
0.8 |
10 |
20 |
3 |
12 |
15 |
14 |
2.9 |
|
|
|
2 |
41 |
51 |
3 |
| SFK0601 |
6 |
1 |
0.8 |
12 |
24 |
3.5 |
15 |
18 |
16 |
3.4 |
|
|
|
3 |
72 |
121 |
7 |
| SFK0801 |
8 |
1 |
0.8 |
14 |
27 |
4 |
16 |
21 |
18 |
3.4 |
|
|
|
4 |
106 |
173 |
11 |
| SFK0802 |
8 |
2 |
1.2 |
14 |
27 |
4 |
16 |
21 |
18 |
3.4 |
|
|
|
3 |
142 |
225 |
8 |
| SFK082.5 |
8 |
2.5 |
1.2 |
16 |
29 |
4 |
26 |
23 |
20 |
3.4 |
|
|
|
3 |
142 |
278 |
8 |
| SFK1002 |
10 |
2 |
1.2 |
18 |
35 |
5 |
28 |
27 |
22 |
4.5 |
|
|
|
3 |
158 |
305 |
10 |
| SFK1004 |
10 |
4 |
2 |
26 |
46 |
10 |
34 |
36 |
28 |
4.5 |
|
|
|
3 |
302 |
590 |
10 |
| SFK1202 |
12 |
2 |
1.2 |
20 |
37 |
5 |
28 |
29 |
24 |
4.5 |
|
|
|
4 |
219 |
317 |
16 |
| SFK1204 |
12 |
4 |
2.5 |
24 |
40 |
6 |
28 |
32 |
25 |
3.5 |
6 |
3.5 |
|
3 |
451 |
722 |
13 |
| SFK1205 |
12 |
5 |
2.5 |
22 |
37 |
8 |
39 |
29 |
24 |
4.5 |
|
|
|
3 |
451 |
883 |
13 |
| SFK1402 |
14 |
2 |
1.2 |
21 |
40 |
6 |
23 |
31 |
26 |
5.5 |
|
|
|
4 |
235 |
633 |
19 |
| SFK1602 |
16 |
2 |
1.2 |
25 |
43 |
10 |
40 |
35 |
29 |
5.5 |
|
|
|
4 |
250 |
670 |
21 |
| SFK2002 |
20 |
2 |
1.2 |
50 |
80 |
15 |
55 |
65 |
68 |
6.5 |
10.5 |
6 |
M6 |
6 |
395 |
1269 |
40 |
| SFK2502 |
25 |
2 |
1.2 |
50 |
80 |
13 |
43 |
65 |
68 |
6.5 |
10.5 |
6 |
M6 |
5 |
374 |
1331 |
41 |
| SFK2503 |
25 |
3 |
2.381 |
40 |
63 |
11 |
51 |
51 |
48 |
5.5 |
9.5 |
5.5 |
M6 |
6 |
1099 |
3076 |
50 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1.Ø4~Ø6螺帽无刮刷器。 |
| 2.Ø8~Ø14螺帽标准品无刮刷器，如需刮刷器，请告知业务人员。 |
| 3. 螺帽均无油孔。 |
| 备注 : 有标志 ★ 可制作左螺纹. |
