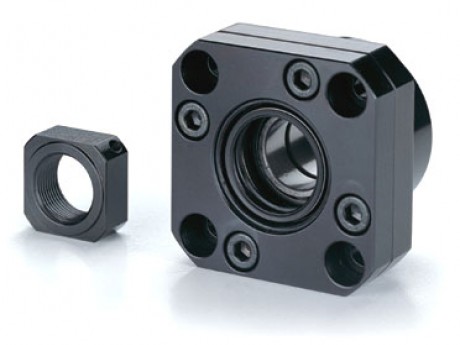

产品名称：丝杠支撑座 WBK固定侧
- 型号：WBK
- 规格：标准
- 点击数：8628
- 产品简介：丝杠撑座,ABBA丝杠撑座高刚性、高精度、防尘佳、价位合理、组立简便、设计容易。

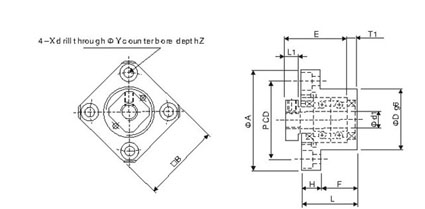

| 型 号 |
d1 |
L |
H |
F |
E |
Dg6 |
A |
PCD |
B |
L1 |
T1 |
L2 |
T2 |
X |
Y |
Z |
M |
T |
| WBK6 |
6 |
20 |
7 |
13 |
22 |
22 |
36 |
28 |
28 |
5.5 |
3.5 |
8.5 |
6.5 |
3.4 |
6.5 |
4 |
M3 |
12 |
| WBK8 |
8 |
23 |
9 |
14 |
26 |
28 |
43 |
35 |
35 |
7 |
4 |
10 |
7 |
3.4 |
6.5 |
4 |
M3 |
14 |
| WBK10 |
10 |
27 |
10 |
17 |
29.5 |
34 |
52 |
42 |
42 |
7.5 |
5 |
8.5 |
6 |
4.5 |
8 |
4 |
M3 |
16 |
| WBK12 |
12 |
27 |
10 |
17 |
29.5 |
36 |
54 |
44 |
44 |
7.5 |
5 |
8.5 |
6 |
4.5 |
8 |
4 |
M3 |
19 |
| WBK15 |
15 |
32 |
15 |
17 |
36 |
40 |
63 |
50 |
52 |
10 |
6 |
12 |
8 |
5.5 |
9.5 |
6 |
M3 |
22 |
| WBK20 |
20 |
52 |
22 |
30 |
50 |
57 |
85 |
70 |
68 |
8 |
10 |
12 |
14 |
6.6 |
11 |
10 |
M4 |
30 |
| WBK25 |
25 |
57 |
27 |
30 |
60 |
63 |
98 |
80 |
79 |
13 |
10 |
20 |
17 |
9 |
15 |
13 |
M5 |
35 |
| WBK30 |
30 |
62 |
30 |
32 |
61 |
75 |
117 |
95 |
93 |
11 |
12 |
18 |
18 |
11 |
17.5 |
15 |
M6 |
40 |
