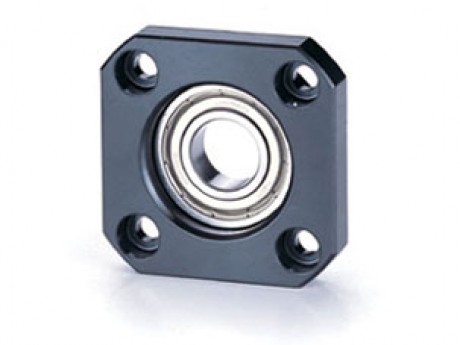

产品名称：丝杠支撑座 WBF支持侧
- 型号：WBF
- 规格：标准
- 点击数：51459
- 产品简介：丝杠撑座,ABBA丝杠撑座高刚性、高精度、防尘佳、价位合理、组立简便、设计容易。

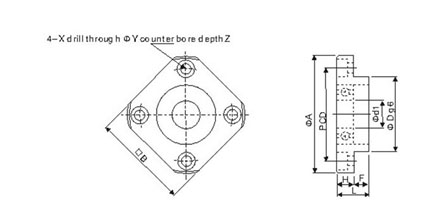

| 型 号 | d1 | L | H | F | Dg6 | A | PCD | B | X | Y | Z |
| WBF10 | 8 | 12 | 7 | 5 | 28 | 43 | 35 | 35 | 3.4 | 6.5 | 4 |
| WBF12 | 10 | 15 | 7 | 8 | 34 | 52 | 42 | 42 | 4.5 | 8 | 4 |
| WBF15 | 15 | 17 | 9 | 8 | 40 | 63 | 50 | 52 | 5.5 | 9.6 | 5.5 |
| WBF20 | 20 | 20 | 11 | 9 | 57 | 85 | 70 | 68 | 6.6 | 11 | 6.5 |
| WBF25 | 25 | 24 | 14 | 10 | 63 | 98 | 80 | 79 | 9 | 14 | 8.5 |
| WBF30 | 30 | 27 | 18 | 9 | 75 | 117 | 95 | 93 | 11 | 17.5 | 11 |
