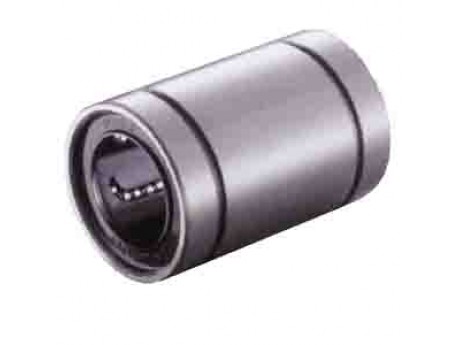

产品名称：直线轴承-LM系列
- 型号：LM
- 规格：LM系列直线轴承
- 点击数：43736
- 产品简介：
| LM系列轴承 |
基本负荷率 |
内径尺寸 |
|
|
|
|
| 标准型 |
开口型 |
间隙可调型 |
额定动 |
额定静 |
dr |
公差 |
径向间隙 |
重量* |
|
|
| 负荷 |
负荷 |
|
|
|
|
|
|
| 型号 |
球 |
型号 |
球 |
型号 |
球 |
C(N) |
CO(N) |
|
|
公差 |
|
|
|
| 列 |
列 |
列 |
|
|
|
|
|
|
| 数 |
数 |
数 |
(mm) |
(μm) |
(μm) |
(g) |
|
|
| LM5UU |
4 |
- |
- |
- |
- |
167 |
206 |
5 |
0 |
-3 |
4 |
|
|
| -8 |
|
|
| LM6UU |
4 |
- |
- |
LM6UUAJ |
4 |
200 |
260 |
6 |
|
-5 |
8 |
|
|
| LM8SUU |
4 |
- |
- |
- |
- |
170 |
220 |
8 |
|
-5 |
11 |
|
|
| LM8UU |
4 |
- |
- |
LM8UUAJ |
4 |
260 |
400 |
8 |
0 |
-5 |
16 |
|
|
| LM10UU |
4 |
LM10UUOP |
3 |
LM10UUAJ |
4 |
370 |
540 |
10 |
-9 |
-5 |
30 |
|
|
| LM12UU |
4 |
LM12UUOP |
3 |
LM12UUAJ |
4 |
410 |
590 |
12 |
|
-5 |
31.5 |
|
|
| LM13UU |
4 |
LM13UUOP |
3 |
LM13UUAJ |
4 |
500 |
770 |
13 |
|
-7 |
43 |
|
|
| LM16UU |
5 |
LM16UUOP |
4 |
LM16UUAJ |
5 |
770 |
1170 |
16 |
0 |
-7 |
69 |
|
|
| LM20UU |
5 |
LM20UUOP |
4 |
LM20UUAJ |
5 |
860 |
1370 |
20 |
-10 |
-9 |
87 |
|
|
| LM25UU |
6 |
LM25UUOP |
5 |
LM25UUAJ |
6 |
980 |
1560 |
25 |
|
-9 |
220 |
|
|
| LM30UU |
6 |
LM30UUOP |
5 |
LM30UUAJ |
6 |
1560 |
2740 |
30 |
|
-9 |
250 |
|
|
| LM35UU |
6 |
LM35UUOP |
5 |
LM35UUAJ |
6 |
1660 |
3130 |
35 |
0 |
-13 |
390 |
|
|
| LM40UU |
6 |
LM40UUOP |
5 |
LM40UUAJ |
6 |
2150 |
4010 |
40 |
-12 |
-13 |
585 |
|
|
| LM50UU |
6 |
LM50UUOP |
5 |
LM50UUAJ |
6 |
3820 |
7930 |
50 |
0 |
-13 |
1580 |
|
|
| LM60UU |
6 |
LM60UUOP |
5 |
LM60UUAJ |
6 |
4700 |
9990 |
60 |
-15 |
-16 |
2000 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 注1：可提供钢保持器产品:LM…GA |
|
|
| 注2：可提供不锈钢产品:LMS…GA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| LM系列轴承 |

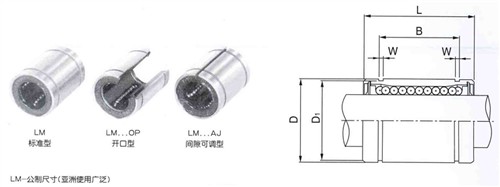

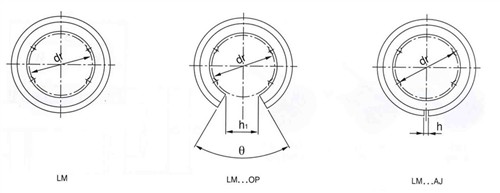

主要尺寸 |
| 标准型 |
开口型 |
间隙可调型 |
外径D |
公差 |
长度L |
公差 |
B |
公差 |
W |
D1 |
h |
h1 |
θ |
| 型号 |
(mm) |
(μm) |
(mm) |
(μm) |
(mm) |
(μm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
| LM5UU |
- |
- |
10 |
0 |
15 |
0 |
10.2 |
0 |
1.1 |
9.6 |
- |
- |
- |
| -9 |
-0.12 |
-0.2 |
| LM6UU |
- |
LM6UUAJ |
12 |
0 |
19 |
0 |
13.5 |
0 |
1.1 |
11.5 |
1 |
- |
- |
| LM8SUU |
- |
- |
15 |
-11 |
17 |
-0.2 |
11.5 |
-0.2 |
1.1 |
14.3 |
1 |
- |
- |
| LM8UU |
- |
LM8UUAJ |
15 |
|
24 |
|
17.5 |
|
1.1 |
14.3 |
1 |
- |
- |
| LM10UU |
LM10UUOP |
LM10UUAJ |
19 |
0 |
29 |
|
22 |
|
1.3 |
18 |
1 |
- |
- |
| LM12UU |
LM12UUOP |
LM12UUAJ |
21 |
-13 |
30 |
|
23 |
|
1.3 |
20 |
1.5 |
8 |
80° |
| LM13UU |
LM13UUOP |
LM13UUAJ |
23 |
|
32 |
|
23 |
|
1.3 |
22 |
1.5 |
9 |
80° |
| LM16UU |
LM16UUOP |
LM16UUAJ |
28 |
|
37 |
|
26.5 |
|
1.6 |
27 |
1.5 |
11 |
80° |
| LM20UU |
LM20UUOP |
LM20UUAJ |
32 |
0 |
42 |
|
30.5 |
|
1.6 |
30.5 |
1.5 |
11 |
60° |
| LM25UU |
LM25UUOP |
LM25UUAJ |
40 |
-16 |
59 |
0 |
41 |
0 |
1.85 |
38 |
2 |
12.5 |
50° |
| LM30UU |
LM30UUOP |
LM30UUAJ |
45 |
|
64 |
-0.3 |
44.5 |
-0.3 |
1.85 |
43 |
2.5 |
15 |
50° |
| LM35UU |
LM35UUOP |
LM35UUAJ |
52 |
0 |
70 |
|
49.5 |
|
2.1 |
49 |
2.5 |
17 |
50° |
| LM40UU |
LM40UUOP |
LM40UUAJ |
60 |
-19 |
80 |
|
60.5 |
|
2.1 |
57 |
3 |
20 |
50° |
| LM50UU |
LM50UUOP |
LM50UUAJ |
80 |
|
100 |
|
74 |
|
2.6 |
76.5 |
3 |
25 |
50° |
| LM60UU |
LM60UUOP |
LM60UUAJ |
90 |
0 |
110 |
|
85 |
|
3.15 |
86.5 |
3 |
30 |
50° |
| -22 |
|
|
点击数：43736 录入时间：2013-06-13 14:17:52【打印此页】【返回】
