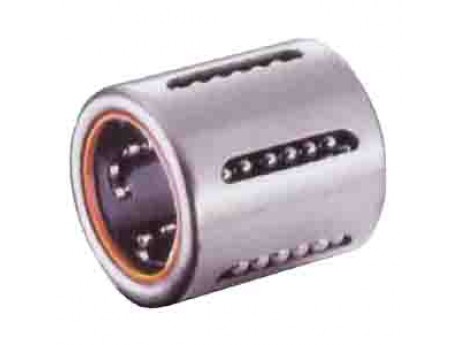

产品名称：轻型直线轴承
- 型号：轻型
- 规格：轻型直线轴承
- 点击数：40214
- 产品简介：

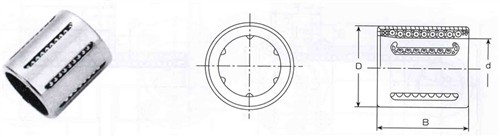

| 型号 | 重量 | 主要尺寸 | 基本额定载荷 | |||
| d | D | B | C | Co | ||
| (mm) | (mm) | (mm) | (N) | (N) | ||
| KH0622 | 7 | 6 | 12 | 22 | 400 | 239 |
| KH0824 | 12 | 8 | 15 | 24 | 435 | 280 |
| KH1026 | 14.5 | 10 | 17 | 26 | 500 | 370 |
| KH1228 | 18.5 | 12 | 19 | 28 | 620 | 510 |
| KH1428 | 20.5 | 14 | 21 | 28 | 620 | 520 |
| KH1630 | 27.5 | 16 | 24 | 30 | 800 | 620 |
| KH2030 | 32.7 | 20 | 28 | 30 | 950 | 790 |
| KH2540 | 66 | 25 | 35 | 40 | 1990 | 1670 |
| KH3050 | 95 | 30 | 40 | 50 | 2800 | 2700 |
| KH4060 | 182 | 40 | 52 | 60 | 4400 | 4450 |
| KH5070 | 252 | 50 | 62 | 70 | 5500 | 6300 |
