产品名称：SBR滑动导轨
- 型号：SBR
- 规格：可提供各规格滑动导轨
- 点击数：12123

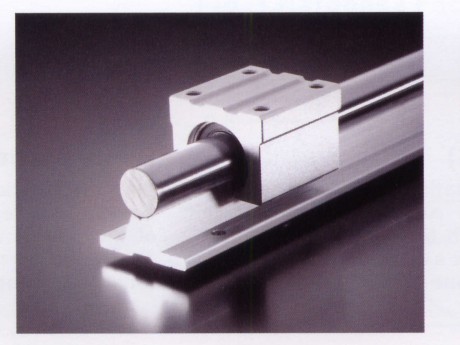

- 产品简介：SBR滑动导轨
| SBR |
|
|
|
|
– |
L1000 |
|
|
SA |
|
|
|
– |
L1000 |
|
| |
|
|
|
|
|
|
轨道长度* |
|
|
|
|
|
|
|
|
轨道长度* |
| |
|
|
|
|
|
|
公称轴径 |
|
|
|
|
|
|
|
|
公称轴径 |
| |
|
|
|
|
|
无标记：标准直线轴 |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
C：镀铬直线轴 |
|
|
|
|
|
|
|
|
SA铝托 |
| |
|
|
|
|
|
SBR滑动导轨 |
|
|
|
|
|
|
|
|
|

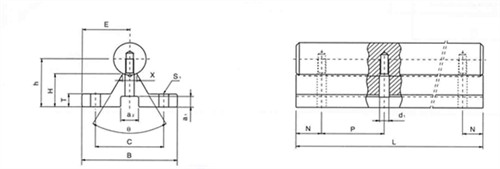

| SBR（C）滑动导轨尺寸 |
|
|
|
|
|
|
|
|
|
|
|
|
| 型号 |
公称 |
主要尺寸 |
重量 |
N |
P |
最大长度 |
| 轴径 |
E |
h |
B |
H |
T |
F |
X |
Y |
C |
θ |
S1 |
a1 |
a2 |
d1 |
(kg/m) |
| SBR(C)16 |
φ16 |
20 |
25 |
40 |
17.8 |
5 |
18.5 |
8 |
11.7 |
30 |
80° |
φ5.5 |
6 |
9.5 |
5.5 |
1.00 |
20 |
200 |
4m |
| SBR(C)20 |
φ20 |
22.5 |
27 |
45 |
17.7 |
5 |
19 |
8 |
10 |
30 |
50° |
φ5.5 |
6.5 |
11 |
6.6 |
1.07 |
20 |
200 |
4m |
| SBR(C)25 |
φ25 |
27.5 |
33 |
55 |
21 |
6 |
21.5 |
8 |
12 |
35 |
50° |
φ6.6 |
6.5 |
11 |
6.6 |
1.50 |
25 |
200 |
4m |
| SBR(C)30 |
φ30 |
30 |
37 |
60 |
22.8 |
7 |
26.5 |
10 |
13 |
40 |
50° |
φ6.6 |
8.5 |
14 |
9 |
1.90 |
25 |
200 |
4m |
| SBR(C)35 |
φ35 |
32.5 |
43 |
65 |
26.6 |
8 |
28 |
13 |
15.5 |
45 |
50° |
φ9 |
8.5 |
14 |
9 |
2.45 |
30 |
200 |
4m |
| SBR(C)40 |
φ40 |
37.5 |
48 |
75 |
29.4 |
9 |
38 |
16 |
17 |
55 |
50° |
φ9 |
8.5 |
14 |
9 |
3.25 |
30 |
200 |
4m |
| SBR(C)50 |
φ50 |
47.5 |
62 |
95 |
38.8 |
11 |
45 |
20 |
21 |
70 |
50° |
φ11 |
12.5 |
19 |
11 |
5.26 |
35 |
200 |
4m |
| N、P的数值需要特殊尺寸，请订货时自行注明 |
|
|
|
|
|
|
|
| 超过最大长度可对接，请订货时注明 |
|
|
|
|
|
|
|
