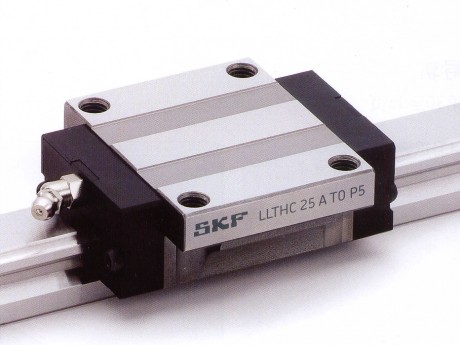

产品名称：SKF直线导轨
- 型号：LLTHC…A
- 规格：标准法兰型滑块
- 点击数：245324
- 产品简介：1
| 规格1) |
|
精度等级2) |
型号3) |
|
|
|
|
|
预压等级 |
|
|
| |
|
|
T0 |
T1 |
T2 |
| — |
|
|
— |
|
|
| 15 |
|
P5 |
LLTHC 15 A T0 P5 |
LLTHC 15 A T1 P5 |
LLTHC 15 A T2 P5 |
|
|
P3 |
LLTHC 15 A T0 P3 |
LLTHC 15 A T1 P3 |
LLTHC 15 A T2 P3 |
|
▶ |
P1 |
|
LLTHC 15 A T1 P1 |
LLTHC 15 A T2 P1 |
|
|
|
|
|
|
| 20 |
|
P5 |
LLTHC 20 A T0 P5 |
LLTHC 20 A T1 P5 |
LLTHC 20 A T2 P5 |
|
|
P3 |
LLTHC 20 A T0 P3 |
LLTHC 20 A T1 P3 |
LLTHC 20 A T2 P3 |
|
▶ |
P1 |
|
LLTHC 20 A T1 P1 |
LLTHC 20 A T2 P1 |
|
|
|
|
|
|
| 25 |
|
P5 |
LLTHC 25 A T0 P5 |
LLTHC 25 A T1 P5 |
LLTHC 25 A T2 P5 |
|
|
P3 |
LLTHC 25 A T0 P3 |
LLTHC 25 A T1 P3 |
LLTHC 25 A T2 P3 |
|
▶ |
P1 |
|
LLTHC 25 A T1 P1 |
LLTHC 25 A T2 P1 |
|
|
|
|
|
|
| 30 |
|
P5 |
LLTHC 30 A T0 P5 |
LLTHC 30 A T1 P5 |
LLTHC 30 A T2 P5 |
|
|
P3 |
LLTHC 30 A T0 P3 |
LLTHC 30 A T1 P3 |
LLTHC 30 A T2 P3 |
|
▶ |
P1 |
|
LLTHC 30 A T1 P1 |
LLTHC 30 A T2 P1 |
|
|
|
|
|
|
| 35 |
|
P5 |
LLTHC 35 A T0 P5 |
LLTHC 35 A T1 P5 |
LLTHC 35 A T2 P5 |
|
|
P3 |
LLTHC 35 A T0 P3 |
LLTHC 35 A T1 P3 |
LLTHC 35 A T2 P3 |
|
▶ |
P1 |
|
LLTHC 35 A T1 P1 |
LLTHC 35 A T2 P1 |
|
|
|
|
|
|
| 45 |
|
P5 |
LLTHC 45 A T0 P5 |
LLTHC 45 A T1 P5 |
LLTHC 45 A T2 P5 |
|
|
P3 |
LLTHC 45 A T0 P3 |
LLTHC 45 A T1 P3 |
LLTHC 45 A T2 P3 |
|
▶ |
P1 |
|
LLTHC 45 A T1 P1 |
LLTHC 45 A T2 P1 |
| 1)规格不同，前端密封的外观也会略有差异。 |
|
| 2）▶P1等级只适用于完整的系统。 |
|
| 3)■首选的范围。系统型号请参见第14页上的型号体系。 |
|

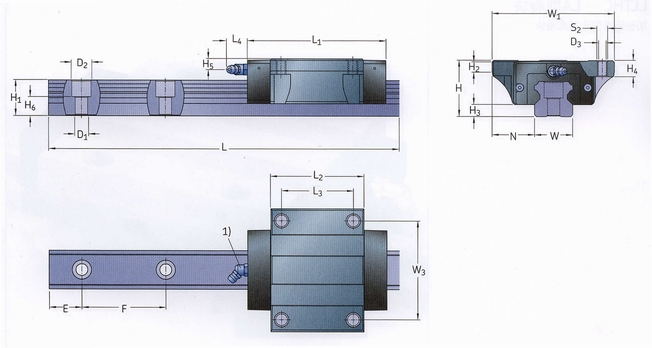

| 尺码 |
安装尺寸 |
|
|
|
保持架尺寸 |
|
|
|
|
|
|
|
| |
W1 |
N |
H |
H2 |
H3 |
L1 |
L2 |
L3 |
L4 |
W3 |
H4 |
H5 |
D3 |
S2 |
| — |
mm |
|
|
|
|
|
|
|
|
|
|
|
|
— |
| 15 |
47 |
16 |
24 |
5.9 |
4.6 |
62 |
40 |
30 |
4.3 |
38 |
8 |
4.3 |
4.3 |
M5 |
| 20 |
63 |
21.5 |
30 |
6.9 |
5 |
72 |
50 |
40 |
15 |
53 |
9 |
5.7 |
5.2 |
M6 |
| 25 |
70 |
23.5 |
36 |
11 |
7 |
82 |
57 |
45 |
16.6 |
57 |
12 |
6.5 |
6.7 |
M8 |
| 30 |
90 |
31 |
42 |
9 |
9 |
100 |
67.4 |
52 |
14.6 |
72 |
11.5 |
8 |
8.5 |
M10 |
| 35 |
100 |
33 |
48 |
12.3 |
9.5 |
114 |
77 |
62 |
14.6 |
82 |
13 |
8 |
8.5 |
M10 |
| 45 |
120 |
37.5 |
60 |
12.3 |
14 |
135 |
96 |
80 |
14.6 |
100 |
15 |
8.5 |
10.4 |
M12 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 尺码 |
导轨尺寸 |
|
|
|
|
|
|
重量 |
负荷额定值2） |
力矩2） |
|
|
|
|
|
|
|
|
|
|
保持架 |
导轨 |
|
|
动态 |
静态 |
动态 |
静态 |
|
W |
H1 |
H6 |
F |
D1 |
D2 |
Emin |
Emax |
Lmax |
|
|
C |
C0 |
MC |
MC0 |
MA/B |
MA0/BO |
| |
|
|
|
|
|
|
-0.75 |
-0.75 |
-1.5 |
|
|
|
|
|
|
|
|
| — |
mm |
|
|
|
|
|
|
|
|
kg |
kg/m |
N |
|
Nm |
|
|
|
| 15 |
15 |
14 |
8.5 |
60 |
4.5 |
7.5 |
10 |
50 |
3920 |
0.21 |
1.4 |
8400 |
15400 |
56 |
103 |
49 |
90 |
| 20 |
20 |
18 |
9.3 |
60 |
6 |
9.5 |
10 |
50 |
3920 |
0.4 |
2.3 |
12400 |
24550 |
112 |
221 |
90 |
179 |
| 25 |
23 |
22 |
12 |
60 |
7 |
11 |
10 |
50 |
3920 |
0.57 |
3.3 |
18800 |
30700 |
194 |
316 |
155 |
254 |
| 30 |
28 |
26 |
14 |
80 |
9 |
14 |
12 |
70 |
3944 |
1.1 |
4.8 |
26100 |
41900 |
329 |
528 |
256 |
410 |
| 35 |
34 |
29 |
17 |
80 |
9 |
14 |
12 |
70 |
3944 |
1.6 |
6.6 |
34700 |
54650 |
535 |
842 |
388 |
611 |
| 45 |
45 |
38 |
21 |
105 |
14 |
20 |
16 |
90 |
3917 |
2.7 |
11.3 |
59200 |
91100 |
1215 |
1869 |
825 |
1270 |
| 1)关于注油嘴的详细信息，请参见第11页。 |
| 2）动态负荷能力以及力矩是基于100km的行程寿命来计算的。详细信息请参见第7页。 |
