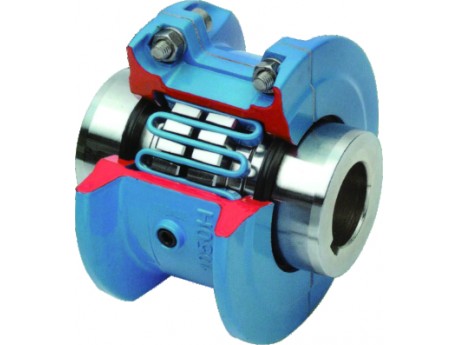

产品名称：KCP蛇形弹簧联轴器 H型
- 型号：1040H
- 规格：H型（水平型）
- 点击数：12835
- 产品简介：KCP蛇形弹簧联轴器 现货供应！
.jpg)
| 型号 Size | 马力100 rpm |
最大速度 (rpm) |
额定扭矩 (kg.cm) |

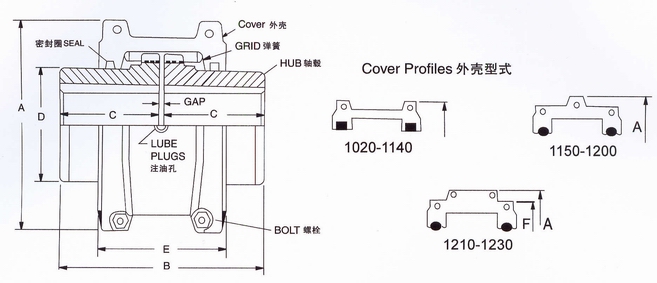

开孔孔径(mm) | 尺寸(mm) | 安装极限 | 重量 (kg) |
润滑重量 (kg) |
|||||||
| 最大 | 最小 | A | B | C | D | E | 最大 | 间隙 | 最小 | ||||||
| 1020H | 0.68 | 4,500 | 486 | 30 | 12 | 101.6 | 98.0 | 47.5 | 39.7 | 66.5 | 1.5 | 3 | 4.5 | 1.9 | 0.03 |
| 1030H | 1.93 | 4,500 | 1,383 | 35 | 12 | 110.0 | 98.0 | 47.5 | 49.2 | 68.3 | 1.5 | 3 | 4.5 | 2.6 | 0.03 |
| 1040H | 3.22 | 4,500 | 2,304 | 43 | 12 | 117.5 | 104.6 | 50.8 | 57.1 | 70.0 | 1.5 | 3 | 4.5 | 3.4 | 0.05 |
| 1050H | 5.63 | 4,500 | 4,033 | 50 | 12 | 138.0 | 123.6 | 60.3 | 66.7 | 79.5 | 1.5 | 3 | 4.5 | 5.4 | 0.05 |
| 1060H | 8.85 | 4,350 | 6,337 | 55 | 19 | 150.5 | 130.0 | 63.5 | 76.2 | 92.0 | 1.5 | 3 | 4.5 | 7.3 | 0.09 |
| 1070H | 13 | 4,125 | 9,217 | 65 | 19 | 161.9 | 155.4 | 76.2 | 87.3 | 95.0 | 1.5 | 3 | 4.5 | 10 | 0.11 |
| 1080H | 27 | 3,600 | 19,010 | 78 | 27.0 | 194.0 | 180.8 | 88.9 | 104.8 | 116.0 | 1.5 | 3 | 4.5 | 18 | 0.17 |
| 1090H | 48 | 3,600 | 34,564 | 95 | 27.0 | 213.0 | 199.8 | 98.4 | 123.8 | 122.0 | 1.5 | 3 | 6 | 25 | 0.25 |
| 1100H | 81 | 2,400 | 58,183 | 107 | 41 | 250.0 | 245.7 | 120.6 | 142.0 | 155.5 | 1.5 | 3 | 6 | 42 | 0.43 |
| 1110H | 121 | 2,250 | 86,411 | 117 | 41 | 270.0 | 258.5 | 127.0 | 160.3 | 161.5 | 1.5 | 4.5 | 9.5 | 54 | 0.51 |
| 1120H | 177 | 2,025 | 126,736 | 136 | 60 | 308.0 | 304.4 | 149.2 | 179.4 | 191.5 | 1.5 | 4.5 | 9.5 | 81 | 0.73 |
| 1130H | 257 | 1,800 | 184,343 | 165 | 67 | 346.0 | 329.8 | 161.9 | 217.5 | 195.0 | 1.5 | 6 | 12.5 | 121 | 0.91 |
| 1140H | 370 | 1,650 | 264,993 | 184 | 67 | 384.0 | 371.6 | 182.8 | 254.0 | 201.0 | 1.5 | 6 | 12.5 | 178 | 1.13 |
| 1150H | 515 | 1,500 | 368,686 | 203 | 108 | 453.1 | 371.8 | 182.9 | 269.2 | 271.3 | 1.5 | 6 | 12.5 | 234 | 1.95 |
| 1160H | 724 | 1,350 | 518,465 | 228 | 120.7 | 501.4 | 402.2 | 198.1 | 304.8 | 278.9 | 1.5 | 6 | 12.5 | 317 | 2.81 |
| 1170H | 965 | 1,225 | 691,286 | 279 | 133.4 | 566.4 | 437.8 | 215.9 | 355.6 | 304.3 | 1.5 | 6 | 12.5 | 448 | 3.49 |
| 1180H | 1,338 | 1,100 | 958,584 | 311 | 152.4 | 629.9 | 483.6 | 238.8 | 393.7 | 321.1 | 1.5 | 6 | 12.5 | 619 | 3.76 |
| 1190H | 1,770 | 1,050 | 1,267,358 | 339 | 152.4 | 675.6 | 524.2 | 259.1 | 436.9 | 325.1 | 1.5 | 6 | 12.5 | 776 | 4.40 |
| 1200H | 2,413 | 900 | 1,728,216 | 361 | 177.8 | 756.9 | 564.8 | 279.4 | 497.8 | 355.6 | 1.5 | 6 | 12.5 | 1,057 | 5.62 |
| 1210H | 3,230 | 820 | 2,304,288 | 366 | 177.8 | 844.5 | 622.3 | 304.8 | 533.4 | 431.8 | 3.0 | 13 | 24.0 | 1,424 | 10.50 |
| 1220H | 4,350 | 730 | 3,110,788 | 411 | 203.2 | 820.7 | 622.9 | 325.0 | 571.5 | 490.2 | 3.0 | 13 | 24.0 | 1,784 | 16.05 |
| 1230H | 5,640 | 680 | 4,438,775 | 450 | 250.0 | 1,003.3 | 703.8 | 345.4 | 609.6 | 546.1 | 3.0 | 13 | 24.0 | 2,267 | 24.00 |
| ■联轴器重量是未孔重量 | |||||||||||||||
