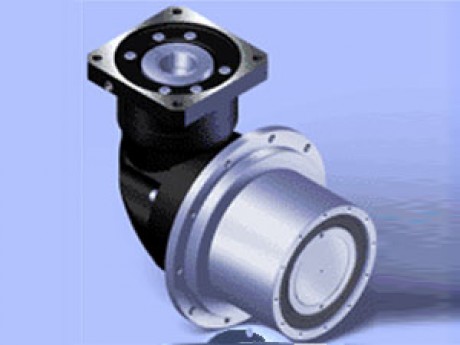

产品名称：ALR190系列(台湾APEX行星减速机)
- 型号：ALR190
- 规格：ALR190
- 点击数：3847
- 产品简介：ALR190系列(台湾APEX行星减速机)
| 规格 |
节數 |
减速比1 |
ALR190 |
| 額定輸出力矩T2N |
Nm |
1 |
|
|
| 2 |
342 |
| 3 |
520 |
| 4 |
650 |
| 5 |
600 |
| 6 |
550 |
| 7 |
500 |
| 8 |
450 |
| 9 |
450 |
| 10 |
600 |
| |
|
| 2 |
|
|
| 10 |
- |
| 15 |
520 |
| 20 |
650 |
| 25 |
600 |
| 30 |
550 |
| 35 |
500 |
| 40 |
650 |
| 45 |
450 |
| 50 |
600 |
| 60 |
550 |
| 70 |
500 |
| 80 |
450 |
| 90 |
450 |
| 100 |
600 |
| 120 |
550 |
| 140 |
500 |
| 160 |
450 |
| 180 |
450 |
| 最大输出力矩T2B |
Nm |
1,2 |
2~90 |
3倍额定输出力矩 |
| 额定输入转速N1N |
rpm |
1 |
2 |
2,000 |
| 1,2 |
3~90 |
3,000 |
| 最大输入转速N1B |
rpm |
1 |
2 |
4,000 |
| 1,2 |
3~90 |
6,000 |
| 超精密背隙 P0 |
arcmin |
1 |
2~9 |
≤ 2 |
| 2 |
10~90 |
≤ 4 |
| 精密背隙 P1 |
arcmin |
1 |
|
≤ 4 |
| 2 |
10~90 |
≤ 7 |
| 标准背隙 P2 |
arcmin |
1 |
2~9 |
≤ 6 |
| 2 |
10~90 |
≤ 9 |
| 扭转刚性 |
Nm/ |
1,2 |
2~90 |
151 |
| arcmin |
| 最大径向力F2rB2 |
Nm |
1,2 |
2~90 |
15,700 |
| 容许轴向力F2B2 |
N |
1,2 |
2~90 |
7,850 |
| 使用寿命 |
hr |
1,2 |
2~90 |
30,000 * |
| 效率η |
% |
1 |
2~9 |
≧ 95 % |
| |
10~90 |
≧ 92 % |
| 重量 |
kg |
1 |
2~9 |
27.3 |
| 2 |
10~90 |
24.3 |
| 使用温度 |
ºC |
1,2 |
2~90 |
-10ºC ~+ 90ºC |
| 润滑 |
|
1,2 |
2~90 |
合成潤滑油脂(NYOGEL 792D) |
| 防护等级 |
|
1,2 |
2~90 |
IP65 |
| 安装方向 |
|
1,2 |
2~90 |
任意方向 |
| 噪音值 |
dB |
1,2 |
2~90 |
≤ 70 |
| (n1=3000rpm) |
| 1.减速比 ( i =Nin/Nout ) |
2.输出转数100rpm 時，作用于输出轴中心位置。 |
| *连续运转，使用寿命为10,000 hrs. |
| 减速机转动惯量 |
| 规格 |
节数 |
减速比1 |
ALR190 |
| 转动惯量 J1 |
kg‧cm2 |
1 |
|
|
| 2~9 |
23.4 |
| 10 |
21.8 |
| |
|
| 2 |
|
|
| 10 |
- |
| 15~90 |
6.84 |
| 90~180 |
6.25 |
| |
ALR190 |
| D1H7 |
132.5 |
| D2 |
M5 x 0.8P |
| D3 |
142.5 |
| D4h7 |
152.8 |
| D5h7 |
190 |
| D6 |
208 |
| D7 |
225 |
| D8 |
9 |
| L1 |
4 |
| L2 |
94 |
| L3 |
278 |
| L4 |
1 |
| L5 |
15 |
| L6 |
12 |
| L7 |
9 |
| C1 3 |
165 |
| C2 3 |
M10 X 1.5P |
| C3 3 |
≤38 |
| C4 3 |
60 |
| C5 3G6 |
130 |
| C6 3 |
6 |
| C7 3 |
142 |
| C8 3 |
22.5 |
| C9 3 |
245.5 |
| C10 3 |
15 |
| C11 3 |
164.5 |
| W |
12 |
| X |
30 |
| Y |
10 |
| Z |
36 |
| 3. C1~C10 是公制标准马达连接板之尺寸，请至 " 减速机选用 " 找出正確之尺寸。 |
| |
ALR190 |
| D1H7 |
132.5 |
| D2 |
M5 x 0.8P |
| D3 |
142.5 |
| D4h7 |
152.8 |
| D5h7 |
190 |
| D6 |
208 |
| D7 |
225 |
| D8 |
9 |
| L1 |
4 |
| L2 |
94 |
| L3 |
266 |
| L4 |
1 |
| L5 |
15 |
| L6 |
12 |
| L7 |
9 |
| C1 3 |
130 |
| C2 3 |
M8 X 1.25P |
| C3 3 |
≤32 |
| C4 3 |
50 |
| C5 3G6 |
110 |
| C6 3 |
5 |
| C7 3 |
115 |
| C8 3 |
19.5 |
| C9 3 |
206.5 |
| C10 3 |
13 |
| C11 3 |
134 |
| W |
12 |
| X |
30 |
| Y |
10 |
| Z |
36 |
| 3. C1~C10 是公制标准马达连接板之尺寸，请至 " 减速机选用 " 找出正確之尺寸。 |
| 尺 寸 |
ALR190 |
| L2 |
|
|
94 |
| D3 |
142.5 |
| D4h7 |
152.8 |
| D5h7 |
190 |
| Screw |
M5X0.8P |
| W |
12 |
| X |
30 |
点击数：3847 录入时间：2011-01-21 14:13:49【打印此页】【返回】
