产品名称：PE系列产品规格(台湾APEX行星减速机)
- 型号：PE
- 规格：台湾APEX
- 点击数：44472

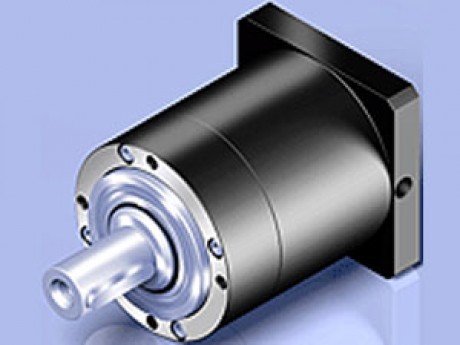

- 产品简介：PE系列(台湾APEX行星减速机)供应型号：PE050，PE070，PE090，PE120，PE155
| 减速机性能资料 |
|
|
|
|
|
|
|
|
| 规格 |
节数 |
减速比1 |
PE050 |
PE070 |
PE090 |
PE120 |
PE155 |
| 额定输出力矩T2N |
Nm |
1 |
3 |
14 |
39 |
104 |
215 |
423 |
| 4 |
12 |
31 |
85 |
176 |
364 |
| 5 |
14 |
39 |
104 |
215 |
423 |
| 7 |
12 |
33 |
91 |
195 |
358 |
| 10 |
9 |
26 |
65 |
150 |
293 |
| |
|
|
|
|
|
|
| 2 |
15 |
14 |
39 |
104 |
215 |
423 |
| 16 |
12 |
31 |
85 |
176 |
364 |
| 20 |
12 |
31 |
85 |
176 |
364 |
| 25 |
14 |
39 |
104 |
215 |
423 |
| 30 |
14 |
39 |
104 |
215 |
423 |
| 35 |
12 |
33 |
91 |
195 |
358 |
| 40 |
12 |
31 |
85 |
176 |
364 |
| 50 |
14 |
39 |
104 |
215 |
423 |
| 70 |
12 |
33 |
91 |
195 |
358 |
| 100 |
9 |
26 |
65 |
150 |
293 |
| 急停扭矩T2NOT3 |
Nm |
1,2 |
3~100 |
三倍额定输出力矩 |
| 额定输入转速n1N |
rpm |
1,2 |
3~100 |
4,500 |
4,000 |
3,600 |
3,000 |
2,500 |
| 最大输入转矩n1B |
rpm |
1,2 |
3~100 |
8,000 |
6,000 |
6,000 |
4,800 |
3,600 |
| 背隙* |
arcmin |
1 |
3~10 |
≤8 |
≤8 |
≤6 |
≤6 |
≤6 |
| 2 |
15~100 |
≤10 |
≤10 |
≤8 |
≤8 |
≤8 |
| 扭转刚性 |
Nm/arcmin |
1,2 |
3~100 |
2 |
4.4 |
13.5 |
35.6 |
64 |
| 容许径向力F2rB2 |
N |
1,2 |
3~100 |
820 |
1,910 |
2,060 |
4,160 |
6,450 |
| 容许轴向力F2aB2 |
N |
1,2 |
3~100 |
410 |
955 |
1,030 |
2,080 |
3,225 |
| 使用寿命 |
hr |
1,2 |
3~100 |
20,000* |
| 效率 |
% |
1 |
3~10 |
≥97% |
| 2 |
15~100 |
≥94% |
| 重量 |
kg |
1 |
3~10 |
0.8 |
1.9 |
3.8 |
8.9 |
18.0 |
| 2 |
15~100 |
1.1 |
2.7 |
5.2 |
12.2 |
24.6 |
| 使用温度 |
℃ |
1,2 |
3~100 |
0℃~+90℃ |
| 润滑 |
|
1,2 |
3~100 |
CASTROL LMX油脂 |
| 防护等级 |
|
1,2 |
3~100 |
IP64 |
| 安装方向 |
|
1,2 |
3~100 |
任意方向 |
| 噪音值（n1=3,000rpm） |
dB |
1,2 |
3~100 |
≤68 |
≤70 |
≤72 |
≤74 |
≤75 |
| 减速机转动惯量 |
|
|
|
|
|
|
|
|
| 规格 |
节数 |
减速比1 |
PE050 |
PE070 |
PE090 |
PE120 |
PE155 |
| 转动惯量J1 |
kg.cm2 |
1 |
3 |
0.16 |
0.63 |
3.48 |
12.84 |
36.72 |
| 4 |
0.16 |
0.60 |
3.31 |
12.22 |
34.63 |
| 5 |
0.16 |
0.59 |
3.28 |
12.10 |
34.24 |
| 7 |
0.16 |
0.59 |
3.27 |
12.05 |
34.07 |
| 10 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| |
|
|
|
|
|
|
| 2 |
15 |
0.16 |
0.59 |
3.28 |
12.10 |
34.24 |
| 16 |
0.16 |
0.60 |
3.31 |
12.22 |
34.63 |
| 20 |
0.16 |
0.59 |
3.28 |
12.10 |
34.24 |
| 25 |
0.16 |
0.59 |
3.28 |
12.10 |
34.24 |
| 30 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| 35 |
0.16 |
0.59 |
3.28 |
12.10 |
34.24 |
| 40 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| 50 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| 70 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| 100 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| 1.減速比 ( i =Nin/Nout ) |
2. 输出转数100rpm 时，作用于输出軸中心位置。 |
| *连续运转，使用寿命为10,000 hrs. |
| 尺寸 |
PE050 |
PE070 |
PE090 |
PE120 |
PE155 |
| D1 |
44 |
62 |
80 |
108 |
140 |
| D2 |
M4×9 |
M5×10 |
M6×12 |
M8×15 |
M10×18 |
| D3K6 |
12 |
16 |
22 |
32 |
40 |
| D4h6 |
35 |
52 |
68 |
90 |
120 |
| D5 |
17 |
25 |
40 |
50 |
65 |
| D6 |
M4×0.7P |
M5×0.8P |
M8×1.25P |
M12×1.75P |
M16×2P |
| D8 |
50 |
70 |
90 |
120 |
155 |
| L2 |
24.5 |
36 |
46 |
70 |
97 |
| L3 |
4 |
5 |
5 |
6 |
8 |
| L4 |
2.5 |
3 |
5 |
6 |
7 |
| L5 |
14 |
25 |
32 |
50 |
70 |
| L6 |
2 |
2 |
2 |
4 |
6 |
| L7 |
1 |
1 |
1.5 |
2 |
2 |
| L8 |
单节 |
55 |
77 |
92 |
127 |
145 |
| 双节 |
79.5 |
110 |
131.5 |
180 |
205.5 |
| L9 |
4.5 |
4.8 |
7.2 |
10 |
12 |
| L10 |
10 |
12.5 |
19 |
28 |
36 |
| C14 |
46 |
70 |
100 |
130 |
165 |
| C24 |
M4×0.7P |
M5×0.8P |
M6×1P |
M8×1.25P |
M10×1.5P |
| C34 |
≤12 |
≤16 |
≤24 |
≤32 |
≤38 |
| C44 |
30 |
34 |
40 |
50 |
60 |
| C54G6 |
30 |
50 |
80 |
110 |
130 |
| C64 |
3.5 |
8 |
4 |
5 |
6 |
| C74 |
52 |
72 |
92 |
122 |
157 |
| C84 |
21.5 |
21.5 |
20 |
24 |
31 |
| C94 |
单节 |
101 |
134.5 |
158 |
221 |
273 |
| 双节 |
125.5 |
167.5 |
197.5 |
274 |
333.5 |
| C104 |
14.5 |
15.5 |
13 |
16 |
21 |
| B1h9 |
4 |
5 |
6 |
10 |
12 |
| H1 |
13.5 |
18 |
24.5 |
35 |
43 |
| 4.C1~C10是公制标准马达连接板之尺寸，请上网点选“减速机选用”找出正确之尺寸。 |
