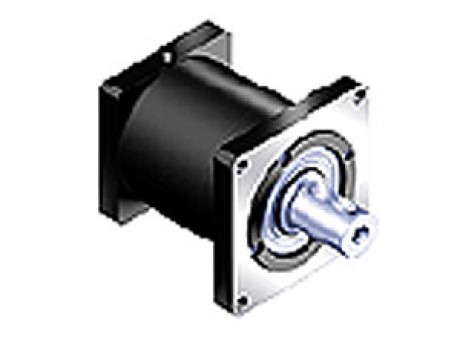

产品名称：PN系列产品规格(台湾APEX行星减速机)
- 型号：PN
- 规格：台湾APEX
- 点击数：4509
- 产品简介：PN075系列(台湾APEX行星减速机)供应型号：PN023;PN034;PN042;PN056;PN075
| 减速机性能资料 |
|
|
|
|
|
|
|
|
| 规格 |
节数 |
减速比1 |
PN023 |
PN034 |
PN042 |
PN056 |
PN075 |
| 额定输出力矩T2N |
Nm |
1 |
3 |
14 |
39 |
104 |
215 |
423 |
| 4 |
12 |
31 |
85 |
176 |
364 |
| 5 |
14 |
39 |
104 |
215 |
423 |
| 7 |
12 |
33 |
91 |
195 |
358 |
| 10 |
9 |
26 |
65 |
150 |
293 |
| |
|
|
|
|
|
|
| 2 |
15 |
14 |
39 |
104 |
215 |
423 |
| 16 |
12 |
31 |
85 |
176 |
364 |
| 20 |
12 |
31 |
85 |
176 |
364 |
| 25 |
14 |
39 |
104 |
215 |
423 |
| 30 |
14 |
39 |
104 |
215 |
423 |
| 35 |
12 |
33 |
91 |
195 |
358 |
| 40 |
12 |
31 |
85 |
176 |
364 |
| 50 |
14 |
39 |
104 |
215 |
423 |
| 70 |
12 |
33 |
91 |
195 |
358 |
| 100 |
9 |
26 |
65 |
150 |
293 |
| 急停扭矩T2NOT3 |
Nm |
1,2 |
3~100 |
三倍额定输出力矩 |
| 额定输入转速n1N |
rpm |
1,2 |
3~100 |
4,500 |
4,000 |
3,600 |
3,000 |
2,500 |
| 最大输入转矩n1B |
rpm |
1,2 |
3~100 |
8,000 |
6,000 |
6,000 |
4,800 |
3,600 |
| 背隙* |
arcmin |
1 |
3~10 |
≤8 |
≤8 |
≤6 |
≤6 |
≤6 |
| 2 |
15~100 |
≤10 |
≤10 |
≤8 |
≤8 |
≤8 |
| 扭转刚性 |
Nm/arcmin |
1,2 |
3~100 |
1.6 |
6.4 |
17.5 |
62.8 |
143.5 |
| 容许径向力F2rB2 |
N |
1,2 |
3~100 |
680 |
1,770 |
1,830 |
4,140 |
6,440 |
| 容许轴向力F2aB2 |
N |
1,2 |
3~100 |
340 |
885 |
915 |
2,070 |
3,220 |
| 使用寿命 |
hr |
1,2 |
3~100 |
20,000* |
| 效率 |
% |
1 |
3~10 |
≥97% |
| 2 |
15~100 |
≥94% |
| 重量 |
kg |
1 |
3~10 |
0.8 |
2.3 |
4.6 |
9.7 |
19.7 |
| 2 |
15~100 |
1.1 |
3.0 |
6.0 |
13.0 |
26.3 |
| 使用温度 |
℃ |
1,2 |
3~100 |
0℃~+90℃ |
| 润滑 |
|
1,2 |
3~100 |
CASTROL LMX油脂 |
| 防护等级 |
|
1,2 |
3~100 |
IP64 |
| 安装方向 |
|
1,2 |
3~100 |
任意方向 |
| 噪音值（n1=3,000rpm） |
dB |
1,2 |
3~100 |
≤68 |
≤70 |
≤72 |
≤74 |
≤75 |
| 减速机转动惯量 |
|
|
|
|
|
|
|
|
| 规格 |
节数 |
减速比1 |
PN023 |
PN034 |
PN042 |
PN056 |
PN075 |
| 转动惯量J1 |
kg.cm2 |
1 |
3 |
0.16 |
0.63 |
3.48 |
12.84 |
36.72 |
| 4 |
0.16 |
0.60 |
3.31 |
12.22 |
34.63 |
| 5 |
0.16 |
0.59 |
3.28 |
12.10 |
34.24 |
| 7 |
0.16 |
0.59 |
3.27 |
12.05 |
34.07 |
| 10 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| |
|
|
|
|
|
|
| 2 |
15 |
0.16 |
0.59 |
3.28 |
12.10 |
34.24 |
| 16 |
0.16 |
0.60 |
3.31 |
12.22 |
34.63 |
| 20 |
0.16 |
0.59 |
3.28 |
12.10 |
34.24 |
| 25 |
0.16 |
0.59 |
3.28 |
12.10 |
34.24 |
| 30 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| 35 |
0.16 |
0.59 |
3.28 |
12.10 |
34.24 |
| 40 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| 50 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| 70 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| 100 |
0.16 |
0.59 |
3.26 |
12.03 |
34.02 |
| 1.减速比 ( i =Nin/Nout ) |
| 2.输出转数100rpm 時，作用于输出轴中心位置。 |
| *连续运转，使用寿命为10,000 hrs. |
| *背隙值为在2%额定力矩T2N的扭力下的所测得 |
| 尺寸 |
PN023 |
PN034 |
PN042 |
PN056 |
PN075 |
| D1 |
66.675(2.625) |
98.425(3.875) |
125.73(4.950) |
177.8(7.0) |
215.011(8.465) |
| D2 |
5.2(0.205) |
5.6(0.220) |
7.1(0.280) |
10.4(0.409) |
14.2(0.559) |
| D3K6 |
12.7(0.5) |
19.05(0.750) |
25.4(1.0) |
38.1(1.5) |
50.8(2.0) |
| D4h6 |
38.1(1.5) |
73.025(2.875) |
55.5(2.185) |
114.3(4.5) |
152.4(6.0) |
| D5 |
17 |
25 |
40 |
50 |
65 |
| D6 |
M4×0.7P |
M5×0.8P |
M8×1.25P |
M12×1.75P |
M16×2P |
| D7 |
75 |
107.5 |
142 |
198 |
260 |
| D8 |
50 |
70 |
90 |
120 |
155 |
| 1 |
57.15(2.250) |
82.55(3.250) |
106.68(4.2) |
146.05(5.750) |
190(7.480) |
| L2 |
31.75 |
38.1 |
50.8 |
63.5 |
88.9 |
| L3 |
1.6(0.063) |
1.6(0.063) |
1.6(0.063) |
3.2(0.126) |
4.75(0.187) |
| L4 |
1 |
1.5 |
1.5 |
2 |
2 |
| L5 |
19.05(0.750) |
25.4(1.0) |
31.75(1.250) |
38.1(1.5) |
63.5(2.5) |
| L6 |
3.788(0.149) |
3.8(0.150) |
5.715(0.225) |
8.563(0.337) |
8.563(0.337) |
| L7 |
1 |
1 |
1.5 |
2 |
2 |
| L8 |
单节 |
58.9 |
82 |
99.3 |
133.7 |
153.05 |
| 双节 |
83.4 |
115 |
138.8 |
186.7 |
213.55 |
| L9 |
4.5 |
4.8 |
7.2 |
10 |
12 |
| L10 |
10 |
12.5 |
19 |
28 |
36 |
| L11 |
6.4 |
7.9 |
12.7 |
19.05 |
22.2 |
| C14 |
66.675(2.625) |
98.425(3.875) |
125.73(4.950) |
149.225(5.875) |
165 |
| C24 |
M4×0.7P |
M5×0.8P |
M6×1P |
11Thru |
M10×1.5P |
| C34 |
≤12 |
≤16 |
≤24 |
≤32 |
≤38 |
| C44 |
32(1.260) |
40(1.575) |
51(2.008) |
55(2.165) |
60 |
| C54G6 |
38.15(1.502) |
73.08(2.877) |
55.65(2.191) |
114.3(4.5) |
130 |
| C64 |
3.5(0.138) |
4(0.157) |
4(0.157) |
4(0.157) |
6 |
| C74 |
55(2.165) |
85(3.346) |
110(4.331) |
130(5.118) |
157 |
| C84 |
23.5(0.925) |
27.5(1.083) |
31(1.220) |
29(1.142) |
31 |
| C94 |
单节 |
114.15(4.494) |
147.6(5.811) |
181.1(7.130) |
226.2(8.905) |
272.95 |
| 双节 |
138.65(5.459) |
180.6(7.110) |
220.6(8.685) |
279.2(10.992) |
333.45 |
| C104 |
16.5(0.650) |
21.5(0.846) |
24(0.945) |
21(0.827) |
21 |
| B1h9 |
3.175(0.125) |
4.763(0.188) |
6.35(0.250) |
9.525(0.375) |
9.525(0.375) |
| H1 |
14.125(0.556) |
21.163(0.833) |
28.2(1.110) |
42.275(1.664) |
55.125(2.170) |
| 4.C1~C10是公制标准马达连接板之尺寸，请上网点选“减速机选用”找出正确之尺寸。 |
