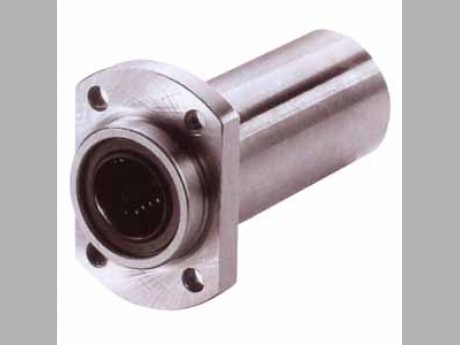

产品名称：LMTP-L导向型加长直线轴承
- 型号：LMTP-L
- 规格：LMTP6LUU到LMTP40LUU可选
- 点击数：3626
- 产品简介：LMTP-L导向型加长直线轴承

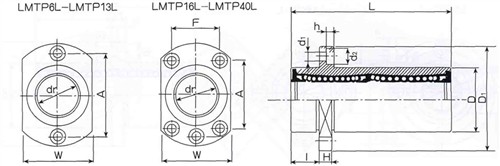

| 型号 |
球 |
主要尺寸 |
基本额定负荷 |
| 例 |
内径 |
外径 |
长度 |
I |
法兰 |
联接孔 |
法兰 |
径向 |
C (kgf) |
Co (kgf) |
| 数 |
dr |
公差 |
D |
公差 |
L |
公差 |
D1 |
W |
H |
A |
F |
d1 |
d2 |
h |
垂直度 |
跳动 |
| LMTP6L |
4 |
6 |
|
12 |
0 |
35 |
±0.3 |
5 |
28 |
18 |
5 |
20 |
|
3.5 |
6 |
3.1 |
|
|
33 |
54 |
| LMTP8L |
4 |
8 |
|
15 |
-0.013 |
45 |
5 |
32 |
21 |
5 |
24 |
|
3.5 |
6 |
3.1 |
|
|
44 |
80 |
| LMTP10L |
4 |
10 |
0 |
19 |
|
55 |
6 |
40 |
25 |
6 |
29 |
|
4.5 |
7.5 |
4.1 |
|
|
60 |
112 |
| LMTP12L |
4 |
12 |
-0.01 |
21 |
0 |
57 |
0 |
6 |
42 |
27 |
6 |
32 |
|
4.5 |
7.5 |
4.1 |
0.015 |
0.015 |
67 |
122 |
| LMTP13L |
4 |
13 |
|
23 |
-0.016 |
61 |
6 |
43 |
29 |
6 |
33 |
|
4.5 |
7.5 |
4.1 |
|
|
83 |
160 |
| LMTP16L |
5 |
16 |
|
28 |
|
70 |
-0.3 |
6 |
48 |
34 |
6 |
31 |
22 |
4.5 |
7.5 |
4.1 |
|
|
125 |
240 |
| LMTP20L |
5 |
20 |
0 |
32 |
0 |
80 |
8 |
54 |
38 |
8 |
36 |
24 |
5.5 |
9 |
5.1 |
|
|
143 |
280 |
| LMTP25L |
6 |
25 |
-0.012 |
40 |
-0.019 |
112 |
0 |
8 |
62 |
46 |
8 |
40 |
32 |
5.5 |
9 |
5.1 |
0.02 |
0.02 |
159 |
320 |
| LMTP30L |
6 |
30 |
|
45 |
|
123 |
10 |
74 |
51 |
10 |
49 |
35 |
6.6 |
11 |
6.1 |
|
|
254 |
560 |
| LMTP35L |
6 |
35 |
0 |
52 |
0 |
135 |
-0.4 |
10 |
82 |
60 |
10 |
55 |
38 |
6.6 |
11 |
6.1 |
0.025 |
0.025 |
270 |
640 |
| LMTP40L |
6 |
40 |
-0.015 |
60 |
-0.022 |
151 |
13 |
96 |
70 |
13 |
64 |
45 |
9 |
14 |
8.1 |
350 |
820 |
| 154 |
